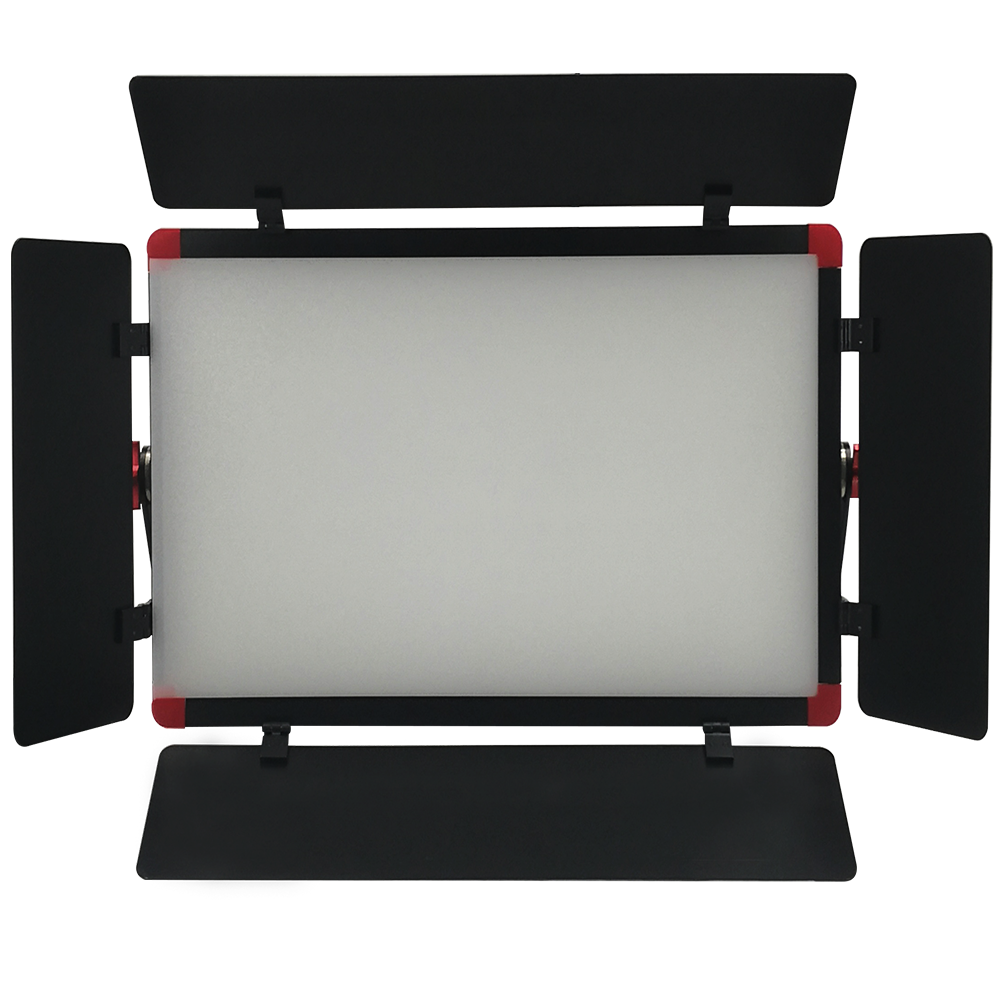

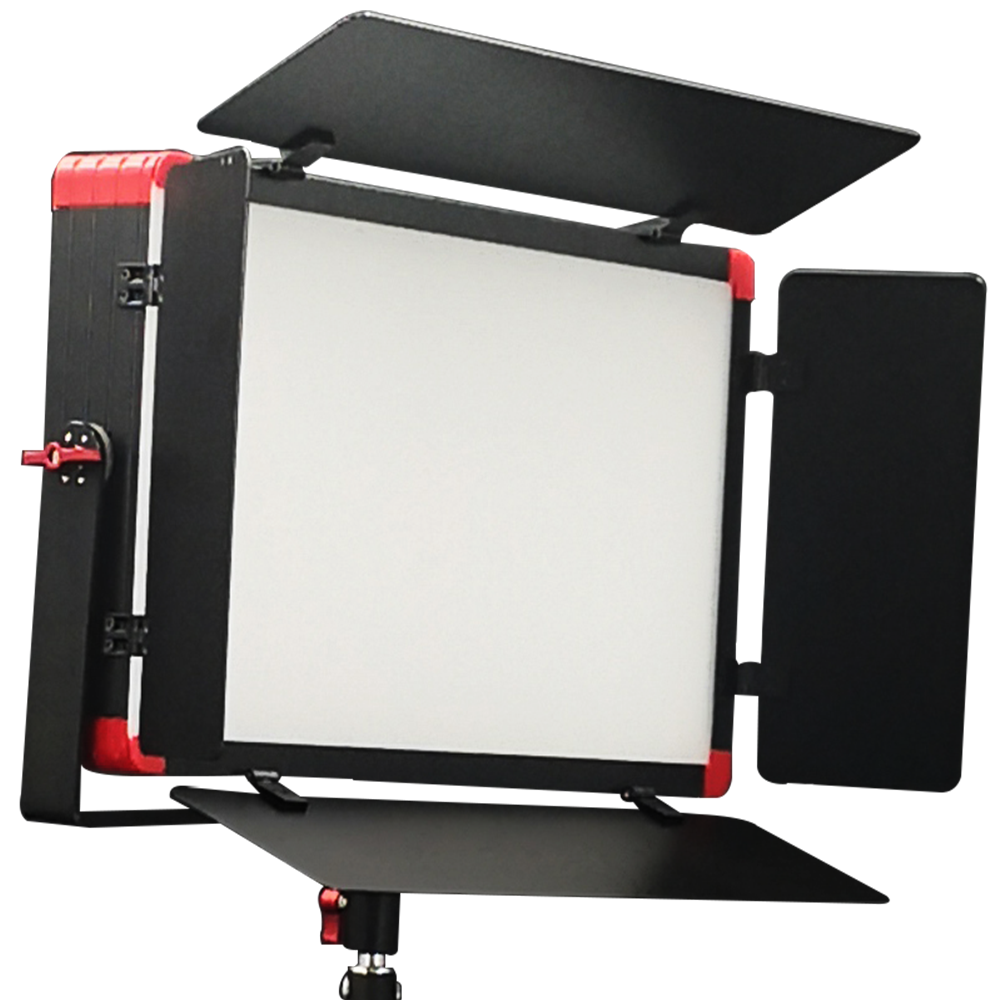

Photographic LED panel light 100W TY-LED840

◆ It consists of 840 high-brightness Epistar LED lamp beads with a life span of 50,000 hours.

◆ Direct-type SMD LED plus surface light source soft light technology.

◆ 120° wide illumination angle of soft light.

◆ 5600K stepless adjustable natural light.

◆ 100W power, 2470Lux illumination at a distance of 1 meter.

◆ 0-255 no flicker digital integrated dimming.

◆ Color rendering index Ra≥97.8, TLCI≥97.

◆ DMX512 controls the illuminance.

◆ The LED screen can display the illuminance value.

◆ Support 220V/AC adapter power supply.

◆ Metal four-leaf hood, detachable design.

◆ All metal body.

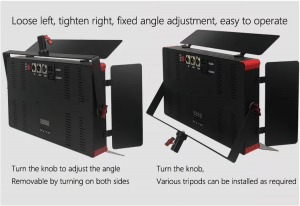

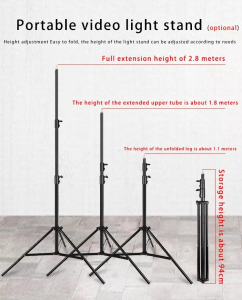

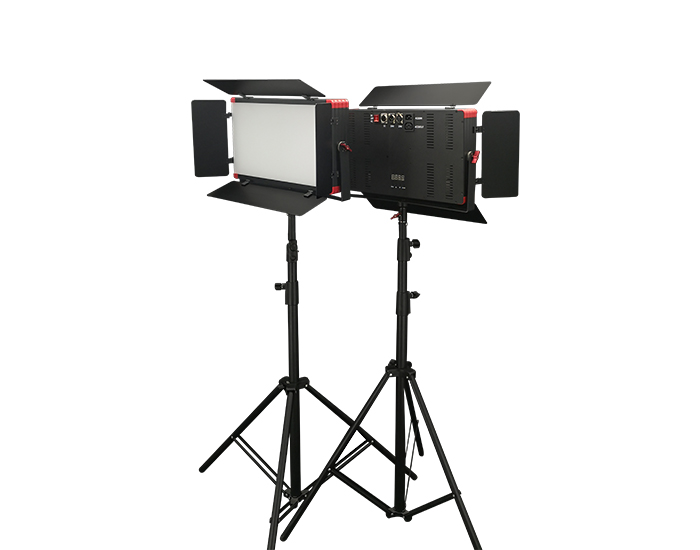

◆ Equipped with U-shaped bracket, which can be hoisted or installed on a tripod.

Description

product name	LED flat light	brand	TYSTVideo / Sky Film and Television
model	LED840	rated power	100W
Light body weight	3.82kg	colour	Black + vermilion
shell material	Aluminum alloy + acrylic	Number of lamp beads	840 Epistar LED lamp beads
Light angle	120 degrees	Service life	50000 hours
Lamp body size	525×85×355mm (including lamp bow)	Color rendering index	Ra≥97.8 TLCI≥97
Color temperature	5600K (±150K) natural light	Rated voltage	AC 100-240V, 50/60Hz
Number of channels	1 piece	Operating temperature	-20℃ to 50℃
Storage temperature	-20℃ to 60℃	Dimming function	0 to 255 stepless adjustment

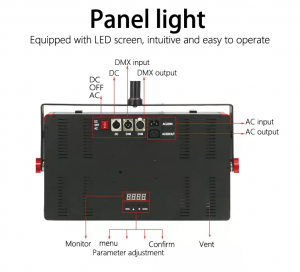

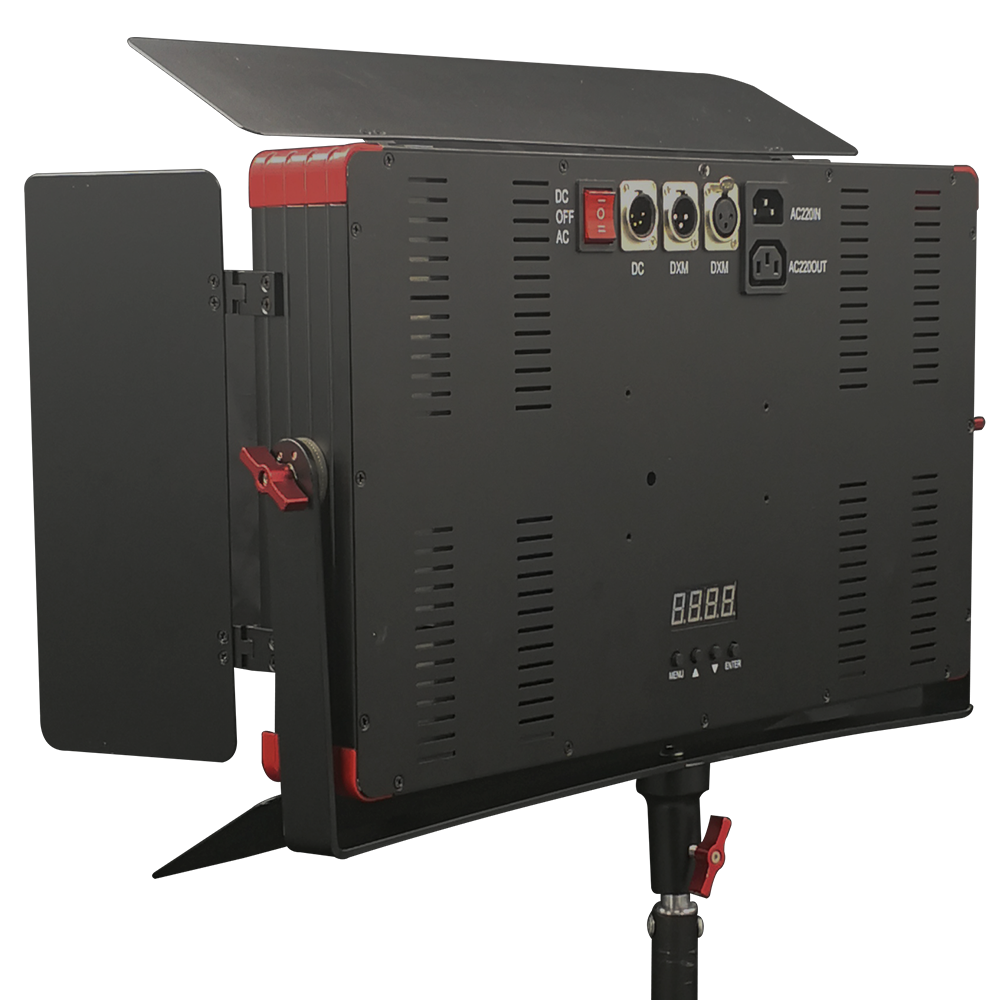

cooling system	Natural air cooling external radiator	Link method	Power line in/out, signal line in/out
operate	LED screen adjust address code and dimming intensity	Signal line	Three-core XLR input, three-core XLR output
Control protocol	DMX512 dimming and host dimming control two kinds	Illuminance	2470LUX/1M, 709LUX/2M, 375LUX/3M

Weight	5 kg
Dimensions	62 × 45 × 16 cm
